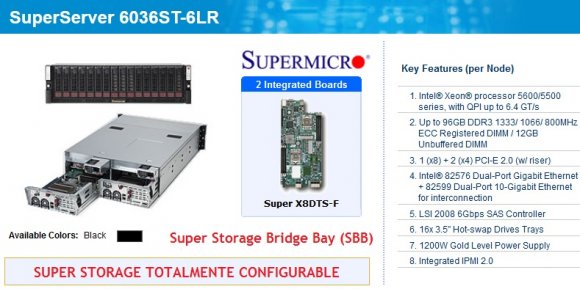

SuperMicro SuperServer SYS-6036ST-6LR (Black), Super Storage Bridge Bay (SBB), Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s; Up to 96GB DDR3; Intel® 82576 Dual-Port Gigabit + 82599 Dual-Port 10-Gigabit; LSI 2008 6Gbps SAS; 1200W; IPMI


SuperMicro SuperServer SYS-6036ST-6LR (Black), Super Storage Bridge Bay (SBB), Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s; Up to 96GB DDR3; Intel® 82576 Dual-Port Gigabit + 82599 Dual-Port 10-Gigabit; LSI 2008 6Gbps SAS; 1200W; IPMI

SuperMicro - Super Storage Bridge Bay (SBB) - 1,3,5 años Gtia -  Each node supports the following:









Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X8DTS-F
CSE-937ETS-R1200NDBP
2
1
Super X8DTS-F Motherboard
3U Chassis
Add-On Card AOM-SAS2-L8-O-P 2 AOM-SAS2-L8-O-P
Backplane BPN-SAS-937 1 BPN-SAS937 - SBB - Supports 16 x 3.5
Cable 1 CBL-0218L 2 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
Cable 2 CBL-0296L 2 9ö 4 pin fan extension cord, for fan guide pin at 1&3 or 1&4
CD CDR-X8 1 For X8 series
Power Distributor PDB-PT937-SG 1 POWER DISTRIBUTOR FOR SC937 SBB W/ GOLD FINGER OUTPUT
Power Supply PWS-1K21P-1R 2 1200W 1U GOLD LEVEL PWS WITH PM BUS
Riser Card RSC-R2UT-2E4E8R-SS026 2 RSC-R2UT-2E4E8R-SS026
Heatsink / Retention SNK-P0037P 4 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP)
Cable 3 CBL-0217L 2 16pin control panel converter cable for SC826,846, 22cm, PBF
Fan 1 FAN-0088L4 6 40x56, 4 PIn PWM Fan Assembly for SC513F, 515, 823M
Tray(s) MCP-220-93703-0B 16 Support SATA/SAS HDD tray with LSI converter bkt
Tray(s) MCP-220-93704-0N 2 SC937E 2U motherboard tray supporting 1FH/2LP
Mounting Rails MCP-290-00057-0N 1 Rail set, quick/quick, default for 4U 17.2
Optional Parts List
  Part Number Qty Description
Add-on Card AOC-LSISS9252 - L3-25111-00C LSISS9252 SAS-TO-SATA INTERPOSER, 2.5"/3.5" HD
HDD Converter MCP-220-93707-0B - Black hot-swap 3.5" to 2.5" HDD tray for SBB, includes interposer bracket








2 Integrated Boards
Super X8DTS-F



Key Features (per Node)

1. Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
2. Up to 96GB DDR3 1333/ 1066/ 800MHz ECC Registered DIMM / 12GB Unbuffered DIMM
3. 1 (x8) + 2 (x4) PCI-E 2.0 (w/ riser)
4. Intel® 82576 Dual-Port Gigabit Ethernet + 82599 Dual-Port 10-Gigabit Ethernet for interconnection
5. LSI 2008 6Gbps SAS Controller
6. 16x 3.5" Hot-swap Drives Trays
7. 1200W Gold Level Power Supply
8. Integrated IPMI 2.0







Supermicro's extensive range of rackmount storage server solutions provides exceptionally high storage density while leveraging high-efficiency power to maximize performance-per-watt savings to reduce TCO.

The product line includes 2U, 3U, and 4U form factors, with each server capable of supporting up to 7 PCI expansion slots and Supermicro's wide line of DP and UP motherboards. Offering up to 93% power efficiency, cooling redundancy, power redundancy, hot-swappable drive bays and fans, Supermicro storage servers are designed to meet the requirements of today's sophisticated enterprise data centers and high performance applications with new levels of storage performance, scalability and reliability. Direct attached HDD backplane (E16 version) and expander backplane (E1 and E2 versions) are available for application-specific solution optimization.




Optimized for mission-critical, enterprise-level storage applications, Supermicro's innovative SYS-6036ST-6LR v2 Super SBB features a fully redundant, fault-tolerant "Cluster-in-a-box" system. The 3U Super SBB supports 16x 3.5" Hot-swap HDDs (SAS1, SAS2 or Enterprise SATA*) with the option to expand beyond 16 HDDS by using the SBB JBOD SYS-937R-E2JB. The Super SBB provides hot-swappable canisters for all active components. Each of the two Serverboard canisters contain support for Dual-Processors (5500/5600 series CPUs), 6 DIMM slots, 3 PCI-E Gen2 slots and 6Gbps SAS (SAS2). With the dual 10GbE connection between the Serverboards via the midplane, if one serverboard fails, the other serverboard is able to take over control and access the HDD's (both controllers can also work as Active-active mode), keeping the system up and running. Storage software is the key to enable this feature, which is available from several Supermicro's partners. Equipped with 1200W (Gold Level) high-efficiency redundant power supplies and redundant cooling fans, the SYS-6026ST-6LR is a highly-available, high-reliability storage system at a competitive price.




  SuperSBB SYS-6036ST-6LR


SYS-6036ST-6LR

Key Features
• 3U Mission critical storage server
• High Density: 16x 3.5" hot-swap SAS(2)/SATA* HDs - up to 32TB
• Fastest Storage: 6Gb/s SAS 2.0
80Plus Gold • Robust Data Availability:
   - Shared storage between redundant controllers
   - Redundant power supply and cooling system
• Greener Storage:
   - Gold Level (93%) efficiency power supply
   - 90%+ VRM power efficiency


SYS-6036ST-6LR Rear

Key Components
• 3U Rack mount storage chassis - SC937ETS-R1200NDBP
• Midplane - BPN-SAS-937
• Power supplies - PWS-1K21P-1R (80 PLUS Gold Level Certified)
• Redundant controllers - X8DTS-F
• Mezzanine options:
   - AOM-SAS2-L8 (LSI 2008 chip)
• Hot-swap cooling system


X8DTS-F

Super SBB controller - X8DTS-F
• Intel® Dual Nehalem-EP Processors; Tylersburg-IOH-36D chipset
• Up to 48GB DDR3 1333/1066/800 reg. ECC / 12GB unb. ECC in 6 DIMMs
• SAS2 support with x36 expander & LSI 2008 / 2108 controller options
• 3x PCI-E Gen2 slots - up to 3 add-on cards for host I/O connectivity
• Onboard BMC for IPMI 2.0 support
• Controllers' connections via midplane: dual 10GbE LAN & IPMI
• Internal ports: one USB Type A port & one SATA DOM port
• External ports: dual GbE LAN ports, KVM connecter
   (1 COM port, 2 USB, VGA), & one 6Gb/s SAS2 port for cascading

AOM-SAS2-L8
SAS2 Mezzanine Card - AOM-SAS2-L8
• LSI 2008 SAS2 controller
• 2x performance of previous generation SAS
• Best performance per Watt / Dollar SAS 2.0 solution in the market



* Note: SATA support requires interposer.



Product SKUs
SYS-6036ST-6LR
  • SuperServer 6036ST-6LR (Black)

Motherboard

2x Super X8DTS-F

Processor/Cache
CPU
  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
    • Intel®
      Xeon®Processor 5600 Series (Westmere)
    • Intel®
      Xeon®Processor 5500 Series (Nehalem-EP)
QPI
  • up to 6.4 GT/s

System Memory
Memory Capacity
  • 6x 240-pin DIMM sockets
  • Supports up to 96 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
Memory Type
  • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage
  • 1.5 V / 1.35V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset
  • Intel® 5520 (Tylersburg) chipset
  • ICH10R + IOH-36D
SAS/SATA*
    • LSI 6Gbps SAS 2008
SAS2 Expander
    • Scalability through cascading
    • 6Gb SAS2/SATA2 HDD support
    • Inband SES-2 Enclosure Management
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel® 82599EB controller for Dual 10 Gigabit Ethernet interconnection between nodes
  • Intel® 82576 Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
Graphics
  • Matrox G200eW 16 MB DDR2
Super I/O
  • Winbond 83827HF chip

Expansion Slots
PCI-Express
  • 1 (x8) PCI-E 2.0 slot (w/ riser)
  • 2 (x4) PCI-E 2.0 slots (w/ riser)

Input / Output
SAS
  • One 4x 6Gbps JBOD expansion port per Node
LAN
  • 2x RJ45 LAN ports
USB
  • 2x USB rear ports (via KVM cable)
  • 1x USB on-board (TypeA)
VGA
  • 1x VGA Port (via KVM cable)
Serial Port / Header
  • 1 console port (via KVM cable)

System BIOS
BIOS Type
  • 32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support



Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-937ETS-R1200NDBP

Dimensions
Height
  • 5.2" (132mm)
Width
  • 17.2" (437mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 75 lbs (34.02 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
  • Alarm Mute Switch
LEDs
  • Power LED
  • Hard Drive Activity LED
  • 2x Network Activity LED
  • System Overheat LED
  • Power Fail LED

Drive Bays
Hot-swap
  • 16x Hot-swap 3.5" Drive Bays
  • SAS or enterprise SATA HDD only recommended

Backplane
SAS2 dual Expander Backplane, features:
• Scalability through cascading
• 6Gb SAS2/SATA2 HDD support
• Inband SES-2 Enclosure Management
• Redundancy dual ported SAS architecture
• Robust AirMax server node connections (SBB specification)

System Cooling
Fans
  • 12x PWM Fans

Power Supply
Redundant 1200W high-efficiency power supply with PMBus
AC Input
  • 1000W Output @ 100-140V, 11.5-8A, 50-60Hz
  • 1200W Output @ 180-240V, 8-5.5A, 50-60Hz
DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
DC Output
with PDB
  • +5V: 50 Amp
  • +3.3V: 30 Amp
  • -12V: 0.6 Amp
Certification 80 PLUS Gold
  80 PLUS Gold Certified
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of 12 fan headers supporting up to 12 fans
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for 12x fan connectors
  • PECI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°to 35°C (50°to 95°F)
  • Non-operating Temperature: -40°to 70°C (-40°to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)



* SATA support requires interposer
