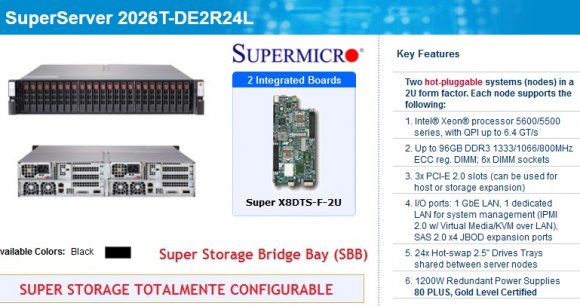

SuperMicro SuperServer SSG-2026T-DE2R24L (Black), Super Storage Bridge Bay (SBB), 2U; Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s; Up to 96GB DDR3; 3x PCI-E ; 1 GbE LAN, 1 dedicated LAN; 24x Hot-swap; 1200W Redundant Power


SuperMicro SuperServer SSG-2026T-DE2R24L (Black), Super Storage Bridge Bay (SBB), 2U; Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s; Up to 96GB DDR3; 3x PCI-E ; 1 GbE LAN, 1 dedicated LAN; 24x Hot-swap; 1200W Redundant Power

SuperMicro - Super Storage Bridge Bay (SBB) - 2U -  1,3,5 años Gtia -  Each node supports the following:









Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X8DTS-F-2U
CSE-927ETS
2
1
Super X8DTS-F-2U Motherboard
2U Chassis
Add-On Card AOM-SAS2-L8-O-P 2 AOM-SAS2-L8-O-P
Backplane BPN-SAS-927 1 SC927 24 x 2.5HDD BPN
Cable 1 CBL-0218L 2 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
CD CDR-X8 1 For X8 series
Power Distributor PDB-PT927-SG 2 SC927 PDB Input +12V and 5Vsb and output with additional 5V
Power Supply PWS-1K21P-1R 2 1200W 1U GOLD LEVEL PWS WITH PM BUS
Riser Card RSC-R2UT-2E4E8R-SS026 2 RSC-R2UT-2E4E8R-SS026
Heatsink / Retention SNK-P0037P 4 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP)
Cable 2 CBL-0217L 2 16pin control panel converter cable for SC826,846, 22cm, PBF
Fan 1 FAN-0088L4 6 40x56, 4 PIn PWM Fan Assembly for SC513F, 515, 823M
Mounting Rails MCP-290-00057-0N 1 Rail set, quick/quick, default for 4U 17.2
Tray(s) MCP-220-92701-0N 24 Support 2.5” SATA/SAS/SSD HDD tray with LSI converter bkt
Tray(s) MCP-220-92702-0N 1 SC927 2U motherboard tray supporting 3LP
Optional Parts List
  Part Number Qty Description
Add-on Card AOC-LSISS9252 - L3-25111-00C LSISS9252 SAS-TO-SATA INTERPOSER, 2.5"/3.5" HD







2 Integrated Boards
Super X8DTS-F-2U







Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

1. Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
2. Up to 96GB DDR3 1333/1066/800MHz ECC reg. DIMM; 6x DIMM sockets
3. 3x PCI-E 2.0 slots (can be used for host or storage expansion)
4. I/O ports: 1 GbE LAN, 1 dedicated LAN for system management (IPMI 2.0 w/ Virtual Media/KVM over LAN), SAS 2.0 x4 JBOD expansion ports
5. 24x Hot-swap 2.5" Drives Trays shared between server nodes
6. 1200W Redundant Power Supplies 80 PLUS, Gold Level Certified






Product SKUs
SSG-2026T-DE2R24L
  • SuperServer 2026T-DE2R24L (Black)

Motherboard

2x Super X8DTS-F-2U

Processor/Cache
CPU
  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
    • Intel®
      Xeon®Processor 5600 Series (Westmere)
    • Intel®
      Xeon®Processor 5500 Series (Nehalem-EP)
QPI
  • up to 6.4 GT/s

System Memory (per Node)
Memory Capacity
  • 6x 240-pin DIMM sockets
  • Supports up to 96 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
Memory Type
  • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage
  • 1.5 V / 1.35V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset
  • Intel® 5520 (Tylersburg) chipset
  • ICH10R + IOH-36D
SAS/SATA*
    • LSI 6Gbps SAS 2008
SAS2 Expander
    • Scalability through cascading
    • 6Gb SAS2/SATA2 HDD support
    • Inband SES-2 Enclosure Management
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel® 82599EB controller for Dual 10 Gigabit Ethernet interconnection between nodes
  • Intel® 82576 Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
Graphics
  • Matrox G200eW 16 MB DDR2
Super I/O
  • Winbond 83827HF chip

Expansion Slots (per Node)
PCI-Express
  • 3 (x8) PCI-E 2.0 slots (can be used for host or storage expansion)

Input / Output (per Node)
SAS
  • 4x 6Gbps JBOD expansion ports
LAN
  • 2x RJ45 LAN ports
USB
  • 2x USB rear ports (via KVM cable)
  • 1x USB on-board (TypeA)
VGA
  • 1x VGA Port (via KVM cable)
Serial Port / Header
  • 1 console port (via KVM cable)

System BIOS
BIOS Type
  • 32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support




Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-927ETS

Dimensions
Height
  • 3.5" (88mm)
Width
  • 17.2" (437mm)
Depth
  • 26.75" (679mm)
Gross Weight
  • 85 lbs (38.6 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
  • Alarm Mute Switch
LEDs
  • Power LED
  • Hard Drive Activity LED
  • 2x Network Activity LED
  • System Overheat LED
  • Power Fail LED

Drive Bays
Hot-swap
  • 24x Hot-swap 2.5" Drive Bays shared between server nodes
  • SAS or enterprise SATA HDD only recommended

Backplane
SAS2 dual Expander Backplane, features:
• Scalability through cascading
• 6Gb SAS2/SATA2 HDD support
• Inband SES-2 Enclosure Management
• Redundancy dual ported SAS architecture
• Robust AirMax server node connections (SBB specification)

System Cooling
Fans
  • 12x PWM Fans

Power Supply
Redundant 1200W high-efficiency power supply with PMBus
AC Input
  • 1000W Output @ 100-140V, 11.5-8A, 50-60Hz
  • 1200W Output @ 180-240V, 8-5.5A, 50-60Hz
DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
DC Output
with PDB
  • +5V: 50 Amp
  • +3.3V: 30 Amp
  • -12V: 0.6 Amp
Certification 80 PLUS Gold
  80 PLUS Gold Certified
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of 12 fan headers supporting up to 12 fans
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for 12x fan connectors
  • PECI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°to 35°C (50°to 95°F)
  • Non-operating Temperature: -40°to 70°C (-40°to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)



Supermicro's extensive range of rackmount storage server solutions provides exceptionally high storage density while leveraging high-efficiency power to maximize performance-per-watt savings to reduce TCO.

The product line includes 2U, 3U, and 4U form factors, with each server capable of supporting up to 7 PCI expansion slots and Supermicro's wide line of DP and UP motherboards. Offering up to 93% power efficiency, cooling redundancy, power redundancy, hot-swappable drive bays and fans, Supermicro storage servers are designed to meet the requirements of today's sophisticated enterprise data centers and high performance applications with new levels of storage performance, scalability and reliability. Direct attached HDD backplane (E16 version) and expander backplane (E1 and E2 versions) are available for application-specific solution optimization.

TRES OPCIONES DE GARANTIA CONFIGURABLES:


EXPANDIBLE A:

Expandible a:







Usd.0.00


Cantidad:


Número del Producto: SSG-2026T-DE2R24L
