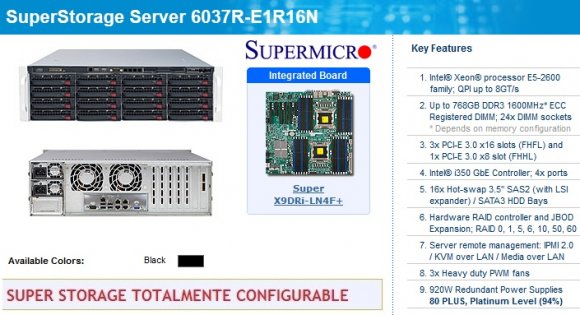

SuperServer SuperStorage SSG-6037R-E1R16N (Black), Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s; Up to 768GB DDR3; 3x PCI-E; Intel® i350 GbE Controller; 4x ports; 16x Hot-swap 3.5” SAS2/sata3; RAID controller and JBOD; remote manag; 920W Red.Pwr


SuperServer SuperStorage SSG-6037R-E1R16N (Black), Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s; Up to 768GB DDR3; 3x PCI-E; Intel® i350 GbE Controller; 4x ports; 16x Hot-swap 3.5” SAS2/sata3; RAID controller and JBOD; remote manag; 920W Red.Pwr

SuperMicro - 1,3,5 años Gtia -  Each node supports the following:









Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X9DRi-LN4F+
CSE-836BE16-R920B
1
1
Super X9DRi-LN4F+ Motherboard
3U Chassis
Backplane BPN-SAS2-836EL1 1 836 backplane with single LSI SAS2X28 expander chip
Cable 1 CBL-0062L 1 12V 8 TO 8 PIN POWER CONNECTOR EXTENSION, LF
Cable 2 CBL-0352L 1 85CM 2-PORT ETX IPASS TO INT IPASS FH
Cable 3 CBL-0421L 1 55CM IPASS TO IPASS PBF
CD CDR-X9 1 Driver CD for X9 series
Heatsink / Retention SNK-P0048P 2 2U Passive CPU Heat Sink for X9 Generation Motherboards w/ Square ILM
Power Supply PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode
Add On Card AOC-SAS2LP-H8iR 1 2108 based SAS/SATA RAID- 8 internal ports/Low profile-PCI-E


Optional Parts List
  Part Number Qty Description
BBU (Battery Backup Unit) BTR-0018L-0000-LSI - Battery Backup for SAS 2108 (can be direct attached to card or connect by extension cable use BTR-0018L-Kit)
Rear Window MCP-220-83605-0N - Rear hot-swap drive bay for 2x 2.5" drives







Integrated Board
Super X9DRi-LN4F+



Key Features

1. Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s
2. Up to 768GB DDR3 1600MHz* ECC Registered DIMM; 24x DIMM sockets * Depends on memory configuration
3. 3x PCI-E 3.0 x16 slots (FHFL) and 1x PCI-E 3.0 x8 slot (FHHL)
4. Intel® i350 GbE Controller; 4x ports
5. 16x Hot-swap 3.5" SAS2 (with LSI expander) / SATA3 HDD Bays
6. Hardware RAID controller and JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
7. Server remote management: IPMI 2.0/ KVM over LAN / Media over LAN
8. 3x Heavy duty PWM fans
9. 920W Redundant Power Supplies 80 PLUS, Platinum Level (94%)


Product SKUs
SSG-6037R-E1R16N
  • SuperServer 6037R-E1R16N (Black)

Motherboard

Super X9DRi-LN4F+

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 (up to 130W TDP)
  • Dual Socket R (LGA 2011)
Cache
  • Up to 20MB
System Bus
  • QPI up to 8 GT/s

System Memory
Memory Capacity
  • 24x 240-pin DDR3 DIMM sockets
  • Supports up to 768 GB DDR3 ECC Registered memory (RDIMM) in 24 DIMM sockets
  • Supports up to 192 GB DDR3 ECC Un-Buffered memory (UDIMM) in 24 DIMM sockets
Memory Type
  • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C602 Chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS AOC
  • LSI 2108 SAS2 RAID AOC (BBU optional)
  • Hardware RAID 0, 1, 5, 6, 10, 50, 60
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Renesas SH7757 BMC
Network Controllers
  • Intel® i350 Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • G200 (Renesas SH7757 BMC w/ graphic controller)
Super I/O
  • Nuvoton W83527

Input / Output
Serial ATA
  • 2x SATA 3.0 ports (6Gbps)
  • 8x SATA 2.0 ports (3Gbps)
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
JBOD
  • 2x JBOD Expansion Ports
USB
  • 9x USB 2.0 ports total
    (4x rear + 4x via header + 1x Type A)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header



Chassis
Form Factor
  • 3U Rackmount
Model

Dimensions
Width
  • 17.2" (437mm)
Height
  • 5.2" (132mm)
Depth
  • 25.5" (648mm)
Weight
  • Gross Weight: 79 lbs (35.8 kg)
  • Net Weight: 48 lbs (21.8 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 3x PCI-E 3.0 x16 slots (Full-height, Full-length)
  • 1x PCI-E 3.0 x8 slot (Full-height, Half-length)

Drive Bays
Hot-swap
  • 16x Hot-swap 3.5" SAS / SATA Drive Bays
Optional OS Drive
  • 2x Rear Hot-swap 2.5" Drive Bays

Backplane
SAS2 / SATA3 backplane

System Cooling
Fans
  • 3x 80mm Hot-swap 4-pin PWM Fans
  • 2x 80mm Rear-exhaust 4-pin PWM Fans

Power Supply with Power Distributor
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input
  • 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output
  •   4 Amp @ +5V standby
  •   75 Amp @ +12V
With Power Distributor
  • +5V: 45 Amp
  • +3.3V: 24 Amp
  • -12V: 0.6 Amp
Certification 80PLUS Platinum94%+  80PLUS
  Platinum Certified

  [ Test Report ]

System BIOS
BIOS Type
  • 64Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Supermicro's extensive range of rackmount storage server solutions provides exceptionally high storage density while leveraging high-efficiency power to maximize performance-per-watt savings to reduce TCO.

The product line includes 2U, 3U, and 4U form factors, with each server capable of supporting up to 7 PCI expansion slots and Supermicro's wide line of DP and UP motherboards. Offering up to 93% power efficiency, cooling redundancy, power redundancy, hot-swappable drive bays and fans, Supermicro storage servers are designed to meet the requirements of today's sophisticated enterprise data centers and high performance applications with new levels of storage performance, scalability and reliability. Direct attached HDD backplane (E16 version) and expander backplane (E1 and E2 versions) are available for application-specific solution optimization.

TRES OPCIONES DE GARANTIA CONFIGURABLES:


EXPANDIBLE A:

Expandible a:







Usd.0.00


Cantidad:


Número del Producto: SSG-6037R-E1R16N
