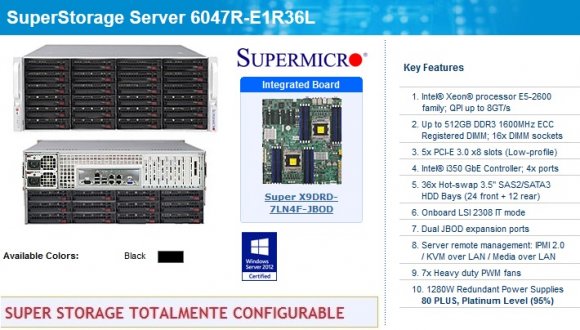

SuperMicro SuperStorage SSG-6047R-E1R36L (Black), Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s; Up to 512GB DDR3; 5x PCI-E; Intel® i350 GbE Controller; 4x ports; 36x Hot-swap 3.5” SAS2/SATA3; LSI 2308; Dual JBOD; remote manag; 1280W Red.Pwr


SuperMicro SuperStorage SSG-6047R-E1R36L (Black), Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s; Up to 512GB DDR3; 5x PCI-E; Intel® i350 GbE Controller; 4x ports; 36x Hot-swap 3.5” SAS2/SATA3; LSI 2308; Dual JBOD; remote manag; 1280W Red.Pwr

SuperMicro - 1,3,5 años Gtia -  Each node supports the following:








Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X9DRD-7LN4F-JBOD
CSE-847E16-R1K28LPB
1
1
Super X9DRD-7LN4F-JBOD Motherboard
4U Chassis
Backplane BPN-SAS2-826EL1 1 826 backplane with single LSI SAS2X28 expander chip
Backplane BPN-SAS2-846EL1 1 Backplane supports upto 24 SAS/SATA
Cable 1 CBL-0281L 1 IPASS TO IPASS 75CM PBF
Cable 2 CBL-0296L 3 9ö 4 pin fan extension cord, for fan guide pin at 1&3 or 1&4
Cable 3 CBL-0352L-LP 1 85CM 2-PORT ETX IPASS TO INT IPASS LP
Cable 4 CBL-0394L 1 IPASS TO IPASS 90CM PBF
CD CDR-X9 1 Driver CD for X9 series
Heatsink / Retention SNK-P0048PS 2 2U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM
Power Supply PWS-1K28P-SQ 2 1U 1280W, redundant single output power supply


Optional Parts List
  Part Number Qty Description
Drive Tray MCP-220-84701-0N - Internal drive tray for one 3.5" HDD or two 2.5" HDD







Integrated Board
Super X9DRD-7LN4F-JBOD



 Key Features

1. Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s
2. Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets
3. 5x PCI-E 3.0 x8 slots (Low-profile)
4. Intel® i350 GbE Controller; 4x ports
5. 36x Hot-swap 3.5" SAS2/SATA3 HDD Bays (24 front + 12 rear)
6. Onboard LSI 2308 IT mode
7. Dual JBOD expansion ports
8. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
9. 7x Heavy duty PWM fans
10. 1280W Redundant Power Supplies 80 PLUS, Platinum Level (95%)


Product SKUs
SSG-6047R-E1R36L
  • SuperServer 6047R-E1R36L (Black)

Motherboard

Super X9DRD-7LN4F-JBOD

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 (up to 130W TDP)
  • Dual Socket R (LGA 2011)
Cache
  • Up to 20MB
System Bus
  • QPI up to 8 GT/s

System Memory
Memory Capacity
  • 16x 240-pin DDR3 DIMM sockets
  • Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
  • Supports up to 128 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C602J Chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS
  • SAS2 via LSI 2308; IT Mode/Pass-through
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Renesas SH7757 BMC
Network Controllers
  • Intel® i350 Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • G200 (Renesas SH7757 BMC w/ graphic controller)
Super I/O
  • Nuvoton W83527

Input / Output
Serial ATA
  • 2x SATA 3.0 ports (6Gbps)
  • 4x SATA 2.0 ports (3Gbps)
SAS
  • 8x SAS2 ports (6Gbps)
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
JBOD
  • 2x JBOD Expansion Ports
USB
  • 9x USB 2.0 ports total
    (4 rear + 4 via header + 1 Type A)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header



Chassis
Form Factor
  • 4U Rackmount
Model

Dimensions
Width
  • 17.2" (437mm)
Height
  • 7" (178mm)
Depth
  • 27.5" (699mm)
Weight
  • Net Weight: 67 lbs (30.4 kg)
  • Gross Weight: 104 lbs (47.2 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 5x PCI-E 3.0 x8 slots (Low-profile)

Drive Bays
Hot-swap
  • 36x Hot-swap 3.5" SAS / SATA HDD trays
    Double-sided: 24 front + 12 rear HDD Bays
Fixed
  • Optional Internal Drive Bracket suppports 2x 2.5" or 1x 3.5" devices (up to 2 supported)

Backplane
SAS2 / SATA3 single expander per backplane

System Cooling
Fans
  • 7x 8cm hot-swap cooling fans
  • Redundant cooling

Power Supply with Digital Switching Control & PMBus 1.2
1280W High-Efficiency (95%+) power supply
AC Input
  • 1000W Output @ 100-140V, 12-8A, 50-60Hz
  • 1280W Output @ 180-240V, 8-6A, 50-60Hz
DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1280W: +12V/106.7A, +5Vsb/4A
Certification 95%+ 80PLUS Platinum
  80 PLUS Platinum
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)



Supermicro's extensive range of rackmount storage server solutions provides exceptionally high storage density while leveraging high-efficiency power to maximize performance-per-watt savings to reduce TCO.

The product line includes 2U, 3U, and 4U form factors, with each server capable of supporting up to 7 PCI expansion slots and Supermicro's wide line of DP and UP motherboards. Offering up to 93% power efficiency, cooling redundancy, power redundancy, hot-swappable drive bays and fans, Supermicro storage servers are designed to meet the requirements of today's sophisticated enterprise data centers and high performance applications with new levels of storage performance, scalability and reliability. Direct attached HDD backplane (E16 version) and expander backplane (E1 and E2 versions) are available for application-specific solution optimization
